Model 63.01 H FB6 F90

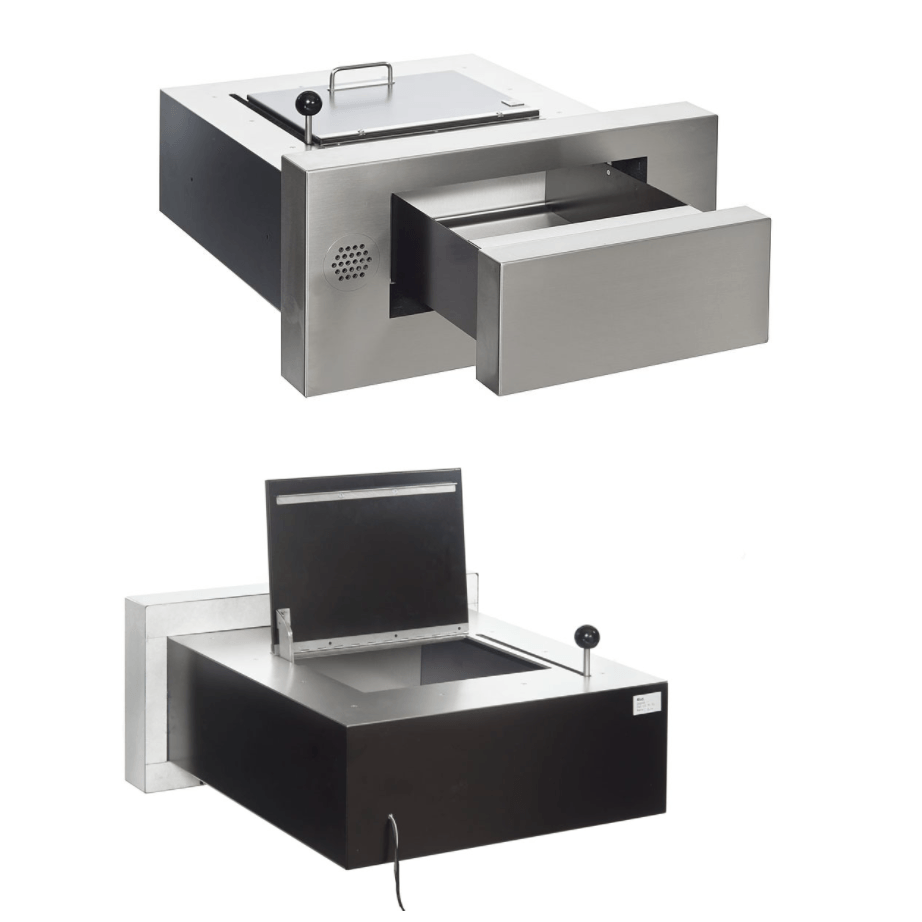

Model 63.01 H FB6 F90 is an flush-fitting sliding duct with intercom for walls up to 140 mm thick, and can be installed directly. With the drawer objects up to 120 mm high can be transferred, but also files with a back thickness of 80 mm. The unit is often used for access control in indoor and covered outdoor areas such as correctional facilities, government buildings and at company gates. The FB6 firearms certification is standard. Fire protection up to EI90 / F90.
Security and Features
- Transit tray with fascia and integrated public intercom for automatic two-way conversation.
- The drawer and the acrylic glass cover stop each other when opened at the same time - the drawer can only be opened when the lid is closed.
- Automatically locks in both end positions. Lock can only be released by the operator behind the counter using the lever.
- It is not possible to reach through the hole when the device is sliding. It is also not possible to manipulate the mechanism.
- For handing over cards, files and similar items up to A4 size.
- Dust and draft sealed.
- Materials provide fire protection, can withstand heavy shots, for example up to G3 battle rifle. Received FB6 certification* from the Firearms Licensing Authority.
- Model 63.01H FB6 F90 complies with German UVV regulations.
Materials and Use
- Passage is made of steel and safety steel.
- Plate, tray and lid are made of brushed stainless steel.
- All metal parts are manufactured using state-of-the-art precision laser cutting technology for the ultimate in quality.
- Model 63.01 H FB6 F90 is suitable for indoor and outdoor use in covered areas.
- No maintenance required. No need for cleaning or lubrication.
Installation and dimensions
The unit is ready to be mounted in prepared walls / recesses. The drawer is mounted from the outside by inserting into the recess from above. It is then screwed firmly on the inside. Keep in mind access requirements and the potential need to later remove the unit in the event of repairs. The unit is very compact and suitable for use in areas with limited space.
- Also available as Model 63H FB6 F90 without two-way intercom.
- Available with rain cover.
- Special sizes available on request.
- Coatings available in RAL colors on request.
