Model 54.01

Model 54.01

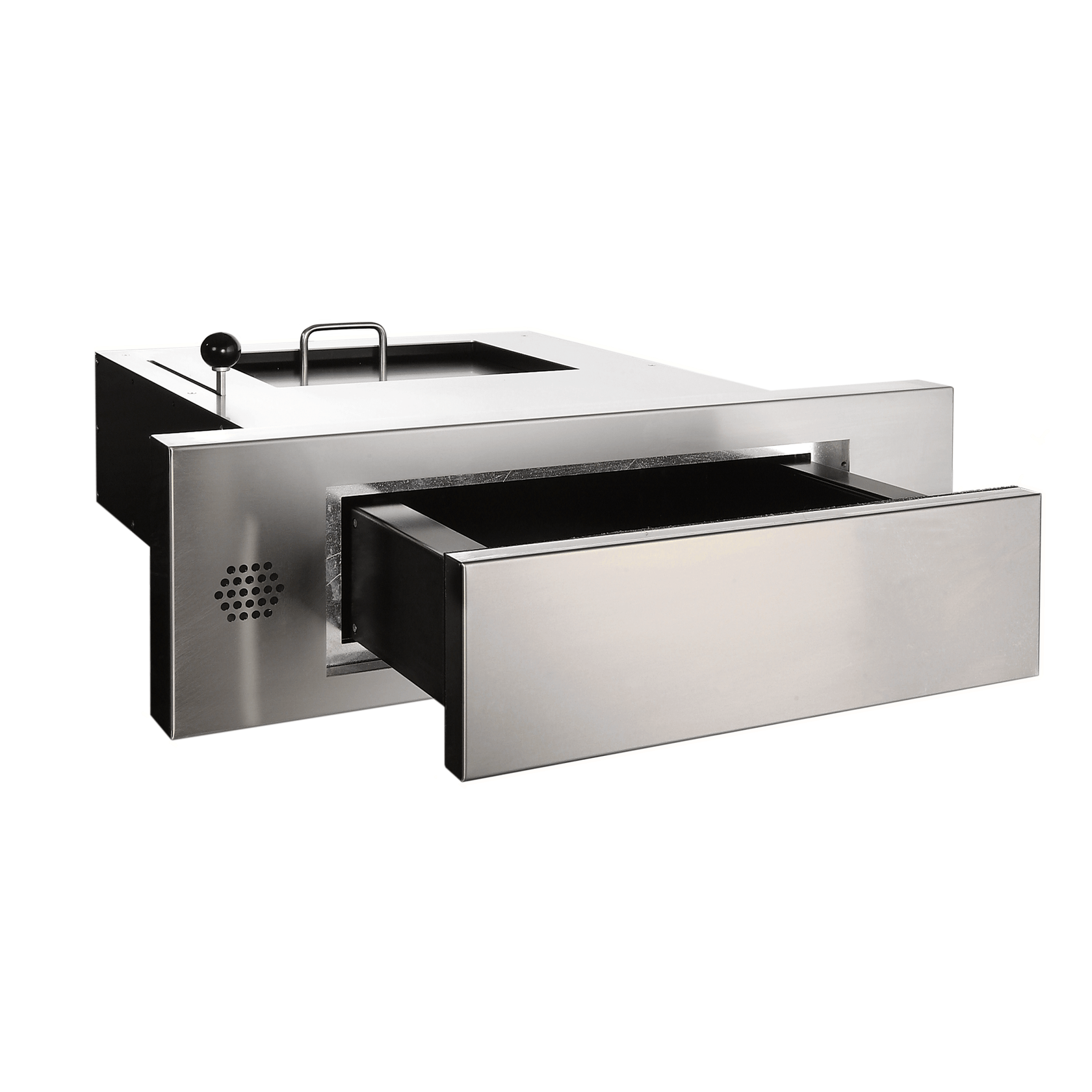

Model 54.01 is a ready-to-install pass-through drawer that includes an integrated two-way intercom system. The unit is ideal for high security unit use in indoor and covered outdoor areas, such as banks, penal institutions, embassies and military institutions. FB7 firearms certification is standard.

Product Information

Security and Features

  • Pass-thru drawer for exterior wall mounting, front panel and integrated intercom for automatic two-way conversation.
  • Manual drawer operation only possible when lid is closed - mechanical automatic lock.
  • Automatically locks in both end positions. Lock can only be released by the operator behind the counter using the lever.
  • It is not possible to reach through the hole when the device is sliding. It is also not possible to manipulate the mechanism.
  • Dust and draft sealed.
  • Provides firearms protection. The unit can withstand heavy small arms, for example up to G3 combat rifle. Has received FB7 certification from the Firearms Licensing Authority.
  • Model 54.01 complies with German UVV regulations.

Materials and Use

  • Steel plate transit.
  • Reinforcement and additional steel plates.
  • Front panel, carriage floor and interior made of brushed stainless steel.
  • All metal parts are manufactured using state-of-the-art precision laser cutting technology for the ultimate in quality.
  • Model 54.01 is suitable for indoor and outdoor use in covered areas.
  • No maintenance required. No need for cleaning or lubrication.

Installation and dimensions

The unit is ready to be mounted in prepared walls / recesses. The drawer is mounted from the outside by inserting into the recess from above. It is then screwed firmly on the inside. Keep in mind access requirements and the potential need to later remove the unit in the event of repairs. The unit is very compact and suitable for use in areas with limited space.


  • Model 54 is also available without a two-way intercom and with a smaller front panel.
  • Available with F90 fire protection.
  • Available with rain cover.
  • Special sizes available on request.
  • Coatings available in RAL colors on request.

Download the PDF with construction drawings
